Overview

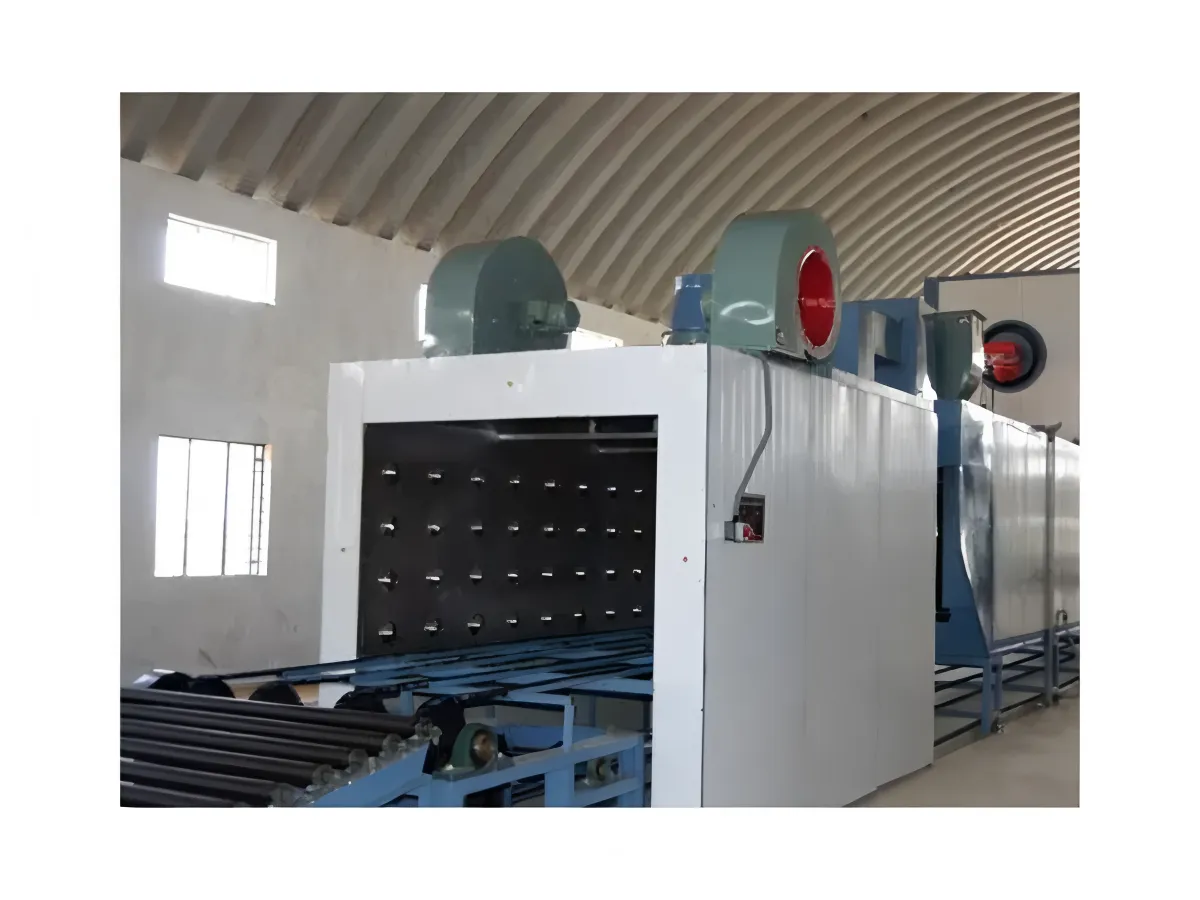

The Premium Drum Spray Booth is a high-performance industrial spraying system designed

specifically for high-volume steel drum coating lines. Optimized for handling standard

 210-liter (55-gallon) steel drums, the equipment enables automatic coating of both the

interior and exterior surfaces and is widely used in the production of drums for sectors such

as petrochemicals, food packaging, and industrial storage.

Product Features

Fully Automated, High-Efficiency Production

The Premium Drum Spray Booth features advanced automation capabilities, seamlessly

 integrating processes from drum positioning and spraying to discharge. With a production

capacity of up to 900 units per hour, it serves as core equipment for modern, large-scale

drum production lines.

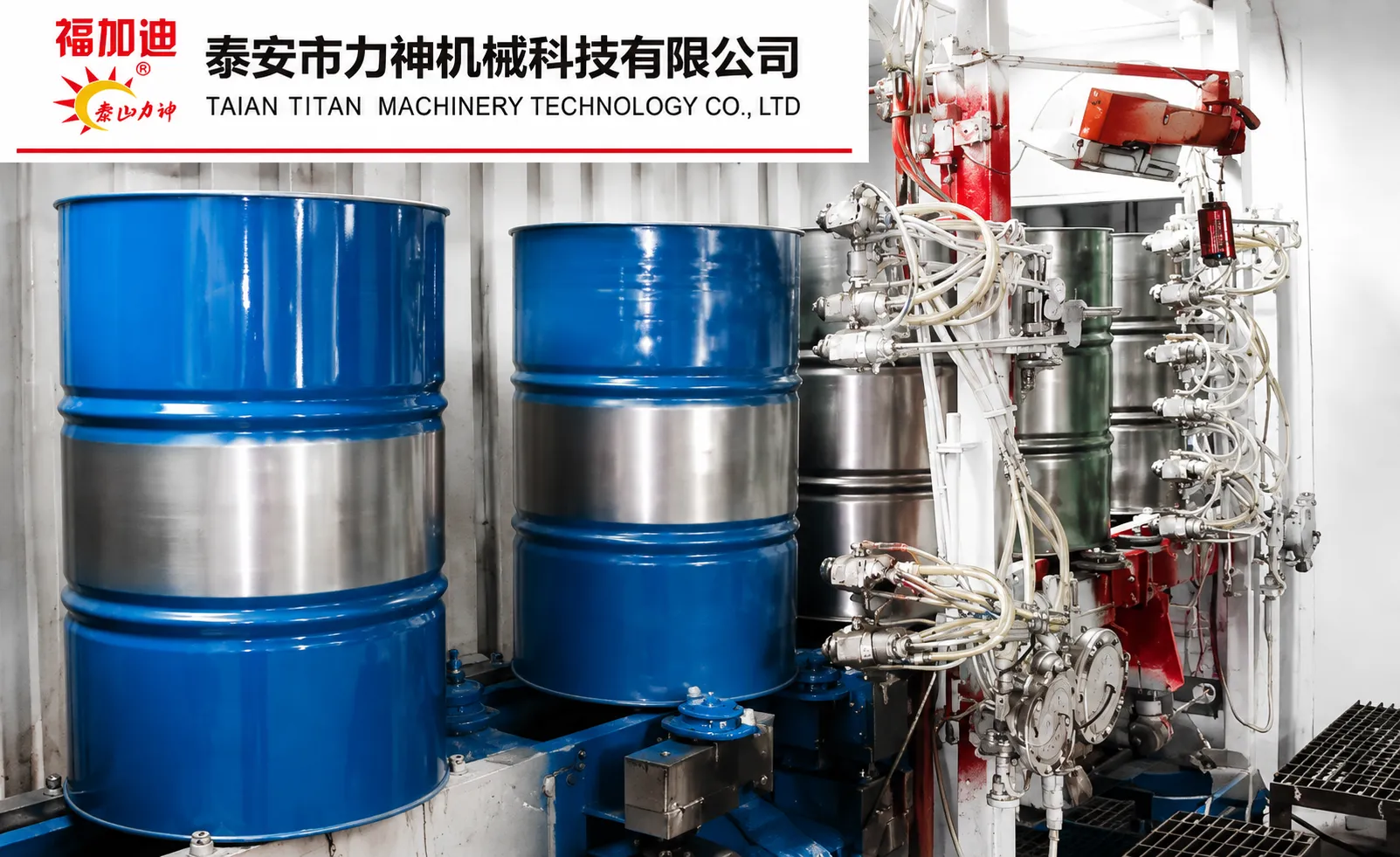

Superior Coating Consistency (Internal & External)The fully automated spraying system ensures that both the interior and exterior walls of the

 steel drums receive high-quality coatings with uniform thickness and strong adhesion, meeting

stringent corrosion resistance and cleanliness standards for chemical and food-grade containers.

Safety and Compliance

The equipment is designed and manufactured in strict accordance with industrial safety regulations.

Adhering to standards set by organizations such as the NFPA (National Fire Protection Association)

 and OSHA (Occupational Safety and Health Administration), the Premium Drum Spray Booth meets

 high-level requirements for electrical explosion protection, fire safety, and hazardous emission control.

Rugged and Durable Construction

The main structure is constructed from stainless steel, enabling it to withstand the corrosive

environments created by coatings and solvents, thereby ensuring long-term, stable operation.

Application Scenarios

The Premium Drum Spray Booth is primarily used in the following areas:

Steel Drum Production Lines: Serves as the final finishing step before the drum is completed,

 applying anti-rust or decorative paint to the steel drum body.

Oil Drum Production Lines: Suitable for the mass coating of standard 200-liter and 210-liter oil drums.

Stainless Steel Drum Production Lines: Designed for applying specialized coatings to stainless steel substrates.

Chemical/Food Drum Production Lines: Provides clean, corrosion-resistant coatings to meet the storage

 and transport requirements for specialized contents.

Installation and Operation

Installation Steps:

1. Determine the equipment location based on the factory layout, ensuring proper integration with upstream and downstream production lines (e.g., pre-treatment, curing ovens).

2. Connect the main power supply, compressed air lines, and coating supply piping.

3. Install the associated exhaust ductwork and exhaust gas treatment system (if applicable).

4. Conduct no-load and loaded commissioning to verify spraying parameters, rotation settings, and conveyor cycle times.

Operational Precautions:

• Safety: Operators must undergo professional training and be familiar with the location of the spray booth's emergency stop button and the use of fire safety equipment.

• Ventilation Maintenance: Regularly inspect the exhaust system and filter media to ensure ventilation performance consistently meets required standards.

• Routine Maintenance: Periodically clean the spray booth interior walls, water curtains, and paint mist collection units to prevent the accumulation of combustible materials. Dispose of used filter media and paint sludge in accordance with environmental regulations.
